Gauging

Bowers Gauging

Through constant development Bowers have become the world leaders in Bore Gauging. It is certainly a good time to buy British.

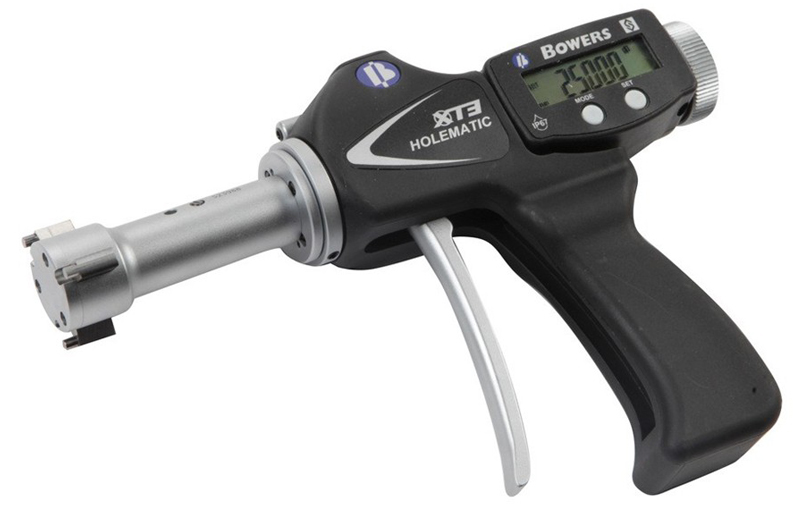

NEW XT3 Digital Pistol Grip Bore Gauge - Metric

Bowers' NEW XT3 Holematic offers a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems.

Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available.

FEATURES

  • New ergonomic design with larger, clearer LCD swivel display
  • IP67 electronics
  • Simple 2-button operation
  • 4 preset memories
  • Proximity RS232/USB output with optional built-in Bluetooth Low Energy (BLE)
  • Bi-directional communication
  • Range 2-300mm (0.080”-12”)
  • 2-6mm 2 point/ 6-300mm 3 point measurement
  • Resolution 0.001mm/0.00005”
  • Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  • Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
  • Extensions available above 6mm for deep hole measurement
  • Setting rings included with individual instruments and sets
  • UKAS certificates supplied as standard with all setting rings
  • UKAS certificates supplied as standard with all gauges
  • Serial number on all digital readouts and measuring heads
  • Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
  • Bore gauges manufactured according to DIN 863, part 4
  • Supplied in fitted wooden case

XT3 Digital Pistol Grip Bore Gauge with Bluetooth - Metric

Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines slots, grooves, deep-holes and many more applications are available on request.

The Bowers XT3 range can be supplied as individual instruments or in complete sets, with UKAS certification of both measuring head and setting ring as standard.

FEATURES

  • New ergonomic design with larger and clearer LCD swivel display
  • IP67 Electronics
  • Simple 2-button operation
  • 4 preset memories
  • Proximity output with optional built-in Bluetooth
  • Bi-directional communication
  • Self-centring heads
  • Fast, accurate measurement
  • Range 2 – 300 mm (0.080” – 12”)
  • 2 – 6mm 2 point/ 6 – 300mm 3 point measurement
  • Resolution 0.001mm/0.00005”
  • Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  • Blind bore measurement from 2mm – 6mm and above 12.5 mm (0.500”)
  • Extensions available above 6mm for deep hole measurement
  • Setting rings included with individual instruments and sets
  • UKAS certificates supplied as standard with all setting rings and gauges
  • Serial number on all digital readouts and measuring heads
  • Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
  • Bore gauges manufactured according to DIN 863, part 4
  • Supplied in fitted wooden case

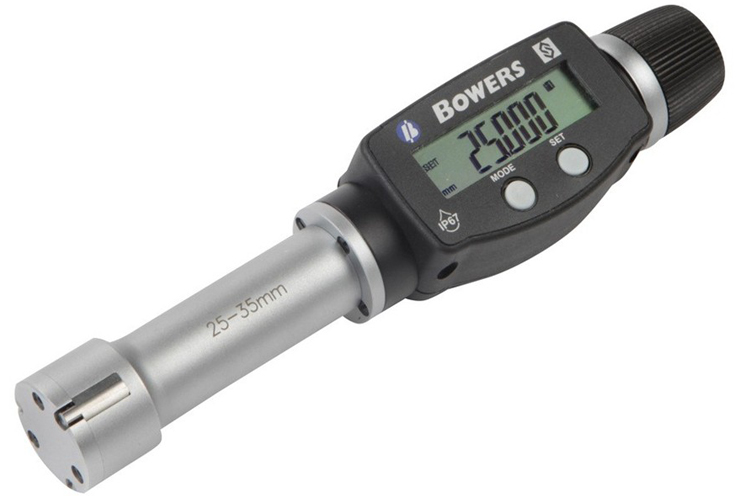

XT3 Digital Bore Gauge with Bluetooth - Metric

Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines slots, grooves, deep-holes and many more applications are available on request.

The Bowers XT3 range can be supplied as individual instruments or in complete sets, with UKAS certification of both measuring head and setting ring as standard.

FEATURES

  • New ergonomic design with larger and clearer LCD display
  • IP67 Electronics
  • Simple 2-button operation
  • 4 preset memories
  • Proximity output with optional built-in Bluetooth
  • Bi-directional communication
  • Range 2 – 300 mm (0.080” – 12”)
  • 2 – 6mm 2 point/ 6 – 300mm 3 point measurement
  • Resolution 0.001mm/0.00005”
  • Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  • Blind bore measurement from 2mm – 6mm and above 12.5 mm (0.500”)
  • Extensions available above 6mm for deep hole measurement
  • Ratchet stop to ensure consistent measurement
  • Setting rings included with individual instruments and sets
  • UKAS certificates supplied as standard with all setting rings and gauges
  • Serial number on all digital readouts and measuring heads
  • Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
  • Bore gauges manufactured according to DIN 863, part 4
  • Supplied in fitted wooden case

NEW XT3 Digital Bore Gauge

Bowers’ XT3 digital internal micrometers offer a new ergonomic design - including a larger and clearer LCD display - along with IP67 electronics protection, proximity output with optional built-in Bluetooth; both allow bi-directional communication giving greater flexibility for data acquisition and storage. The extended mechanical travel of the XT range means that special heads can also be manufactured to accommodate users most awkward measuring problems. Measuring heads for threads, splines, slots, grooves, deep-holes and many more applications are available.

FEATURES

  • New ergonomic design with larger and clearer LCD display
  • IP67 electronics
  • Simple 2-button operation
  • 4 preset memories
  • Proximity RS232/USB output with optional built-in Bluetooth Low Energy (BLE)
  • Bi-directional communication
  • Range 2-300mm (0.080”-12”)
  • 2-6mm 2 point/ 6-300mm 3 point measurement
  • Resolution 0.001mm/0.00005”
  • Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  • Blind bore measurement from 2mm - 6mm and above 12.5mm (0.500”)
  • Extensions available above 6mm for deep hole measurement
  • Ratchet stop to ensure consistent measurement
  • Setting rings included with individual instruments and sets
  • UKAS certificates supplied as standard with all setting rings
  • UKAS certificates supplied as standard with all gauges
  • Serial number on all digital readouts and measuring heads
  • Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
  • Bore gauges manufactured according to DIN 863, part 4
  • Supplied in fitted wooden case

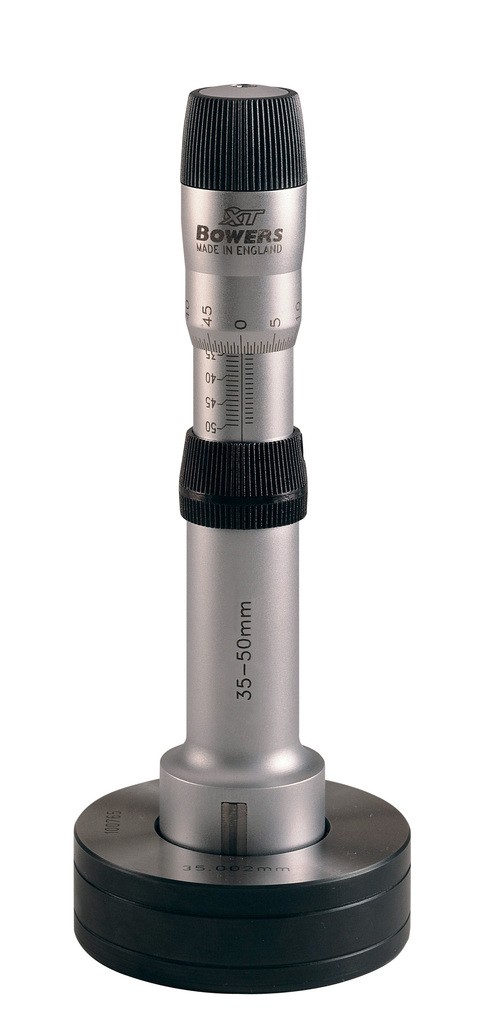

Mechanical Bore Gauge - XT Analogue - Metricxx

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary. Their wide application range, 2-300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certification..

For 2015, Bowers has launched the XTA Micro to cover the measuring range 2-20mm. The XTA Micro incorporates a more compact mechanical controller and Vernier scale for improved resolution.

FEATURES

  • Range 2-300mm (0.080"-12")
  • 2-6mm 2 point / 6-300mm 3 point measurement
  • Graduation XTA Micro 2-6mm: 0.001mm, 6-20mm: 0.002mm
  • Graduation XTA 20-300mm: 0.005mm
  • Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  • Blind bore measurement from 2mm-6mm and above 12.5mm (0.500")
  • Extensions available above 6mm for deep hole measurement
  • Ratchet stop to ensure consistent measurement
  • Setting rings included with individual instruments and sets
  • UKAS certificates supplied as standard with all setting rings
  • UKAS certificate supplied as standard with all XT mechanical gauges
  • Serial number on all gauges
  • Bore gauges manufactured according to DIN 863, part 4
  • Supplied in fitted wooden case

Mechanical Bore Gauge - XT Analogue - Imperial

Bowers XT Analogue Bore Gauges are an economical solution to accurate shop-floor bore measurement. The extended mechanical travel of these advanced two or three point gauges ensures that exchanging measuring anvils is now unnecessary. Their wide application range, 2-300mm, rugged construction and easy read scale, ensure both accuracy and ease of use. XT measuring heads and setting rings are supplied with UKAS certification.

CONFIGURATIONS

  • Range 2-300mm (0.080"-12")
  • 2-6mm 2 point / 6-300mm 3 point measurement
  • Graduation 2-6mm: 0.001mm, 6-300mm: 0.005mm
  • Tungsten carbide measuring faces on all 3-point heads from 12.5mm
  • Blind bore measurement from 2mm-6mm and above 12.5mm (0.500")
  • Extensions available above 6mm for deep hole measurement
  • Ratchet stop to ensure consistent measurement
  • Setting rings included with individual instruments and sets
  • UKAS certificates supplied as standard with all setting rings
  • UKAS certificate supplied as standard with all XT mechanical micrometers
  • Serial number on all gauges
  • Bore gauges manufactured according to DIN 863, part 4
  • Supplied in fitted wooden case

Height Gauges

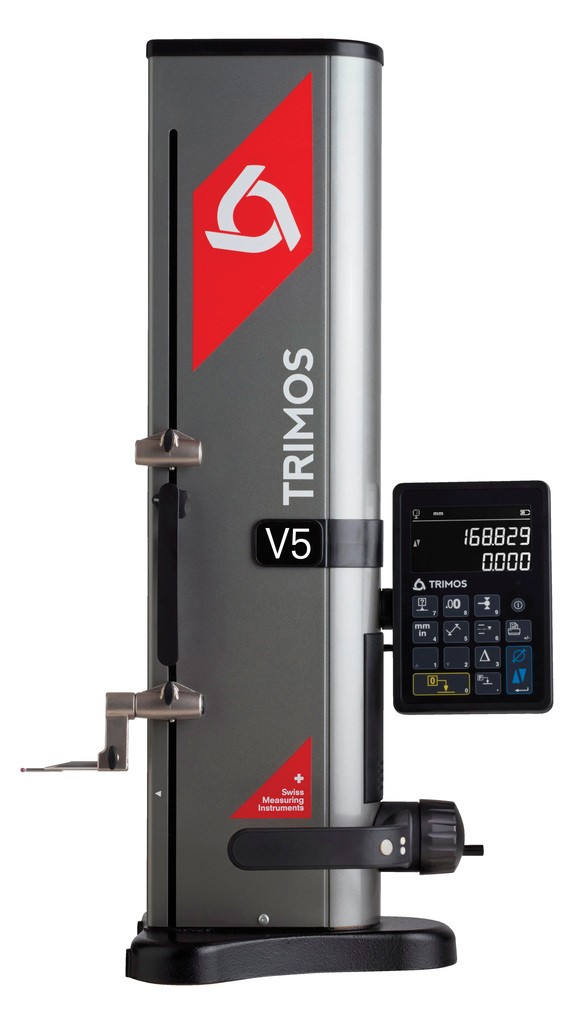

Trimos V5 Manual / Motorised Height Gauge

The vertical measuring instruments V5 and V6 are the descendants of the legendary V+ line; universally recognised for its ease of use and high quality.

Their clear display and user-friendly functions offer exceptional ease of use. But that’s not all: the V5 and V6 are equipped with a revolutionary displacement hand-wheel offering its user the choice of displacement mode of the measuring carriage; either manual or motor-driven. Neither mode is compromised, which means that the user who prefers a manual instrument will not notice a difference from a classic manual instrument, and the same applies to the motor-driven displacement. This innovation avoids having to make a difficult choice during the purchasing process and can accommodate multiple users with the same instrument.

The design of the V5 with its side probe holders revives an old Trimos tradition: they enable measuring with long, robust probes guaranteeing excellent repeatability. The V6 is of the same calibre as the V5. It’s equipped with a more precise measuring system and enables the use of an electronic perpendicular probe.

FEATURES

  • Measuring ranges: 400, 700 and 11000mm
  • Extremely easy to use
  • Electronically adjustable measuring force
  • Manual or motor-driven displacement
  • Larger than 300mm probes as standard
  • Vast range of accessories
  • All adjustments possible without tools
  • RS232 et USB interfaces

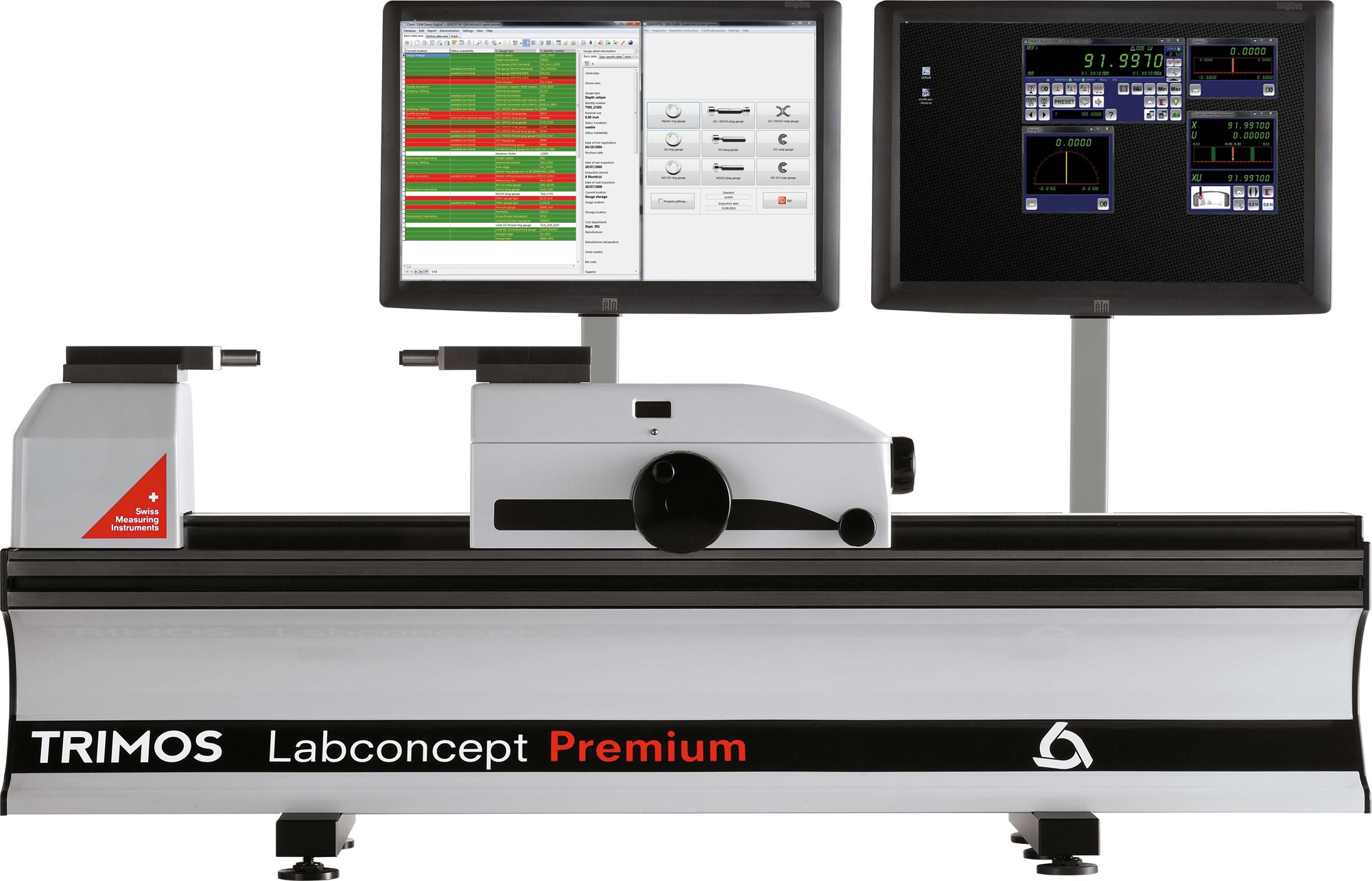

Trimos Labconcept and Labconcept Premium Calibration Machines

The Trimos Labconcept represents the latest developments in the field of multifunction calibration machines. Capable of calibrating an extremely wide range of measuring instruments with incredible speed and accuracy the instrument is now the calibration machine of choice for some of the biggest UKAS and factory laboratories throughout the UK and beyond.

The wide range of quick-change ingenious accessories and holders facilitates the accurate calibration of an exceedingly wide range of measuring instruments. Utilising the user-friendly QM software, the instrument can rapidly send its findings to a gauge-management module or generate calibration certificates instantly.

FEATURES

  • Large measuring range 0-14" (0-370mm) and 0-79" (0-2050mm)
  • Developed for EN ISO 9000/2000 standards
  • Switchable resolution; 0.0001", 0.00001", 0.000001", or 0.001mm, 0.0001mm, 0.00001mm
  • Wide range of easily interchangeable accessories
  • Adjustable measuring force 0-12N
  • Displacement speed of measuring carriage: Labconcept 1500mm/s, Labconcept Premium 400mm/s
  • Fine adjustment range = 0.394" / 10mm
  • Operational temperature limit 10º-40ºC
  • Operational humidity limit 20-80%
