ROMER Portable Measuring Arm
Portable measuring arms allow you measure on the machine or shop floor. They feature no homing
procedures, simplicity of operation and reliable 3D measurements. Articulated arms can be equipped with
different length probes and scan heads to measure even difficult-to-access points either optically or by
touch.
Romer Absolute Arm with integrated scanner
Romer Absolute Arm with external scanner
Romer Absolute Arm with PC-DMIS Touch
Romer Absolute Inspection System
Absolute Arm - 6 Axis
The new Romer Absolute Arm is absolutely advanced. Drawing inspiration and resources from the entire Hexagon
Metrology product family, and all ROMER arms that came before, the Romer Absolute Arm has been redesigned to
ensure the ultimate user experience. A new ergonomic wrist is the first to be designed around the complex
contours of the human hand. Sensory feedback enables users to take measurements in even the most challenging
shop environments.
The Romer Absolute Arm is still the easiest and fastest to use in the industry. Intelligent Quick Change
Probes require no special tools or recalibration after probe changes. Absolute encoders "know"
where the arm is at all times, eliminating the need for complex homing procedures. A thermally stable dual
carbon fiber tube construction does not lock up when temperatures change.
CONFIGURATIONS
The Romer Absolute Arm 73 and 75 series offer two different levels of performance and features to suit
most inspection requirements.
|
73-Series
|
75-Series
|
Absolute Encoders
|
Included
|
Included
|
Zero-G Counterbalance with Lock
|
Included
|
Included
|
SpinGrips
|
N/A
|
Included
|
TESA TKJ Connector
|
Included
|
Included
|
3 TESA Hard Probes
|
Included
|
Included
|
Feature Pack
|
Optional
|
ROMER Mobility Pack
|
Digital Camera
|
Included
|
Included
|
LED Worklight
|
Included
|
Included
|
Certified Calibration Sphere
|
Included
|
Included
|
NIST Traceable Length Standard Bar
|
Optional
|
Included
|
Hard Case
|
Included
|
Included
|
Dust Cover
|
Included
|
Included
|
Base
|
Bolt-down base plate
|
Magnetic
|
Travel Case
|
Included
|
Included
|
Application Software
|
PC-DMIS Portable
|
PC-DMIS Portable
|
Utility Software
|
RDS
|
RDS
|

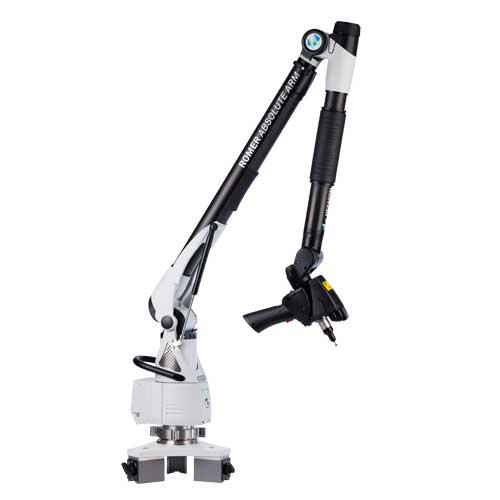

Absolute Arm - 7 Axis SI
The universal scanning solution for all types of parts and applications.
The newly redesigned Romer Absolute Arm 7-Axis "SI" series with integrated laser scanner delivers
the convenience of a fully integrated 3D scanning solution for a variety of applications. Use it for feature
inspection to CAD, free-form surface inspection to CAD and
reverse engineering.
The scanner is incorporated into the seventh axis and rotates around the probe for a more natural feel. The
SI version of the Absolute Arm is easily converted to an SE version to accept an externally mounted laser
scanner.
Since its weight is balanced with ROMER's Zero-G counterbalance, the arm is the easiest and most
ergonomic in the industry. The feature pack contains the scanner interface, so no external controller box is
required. Single button automatic laser power control allows scanning of different surface types. No warm up
time coupled with no homing procedures means an operator can be up and scanning in just minutes.
Romer Absolute Arm with integrated scanner is the first portable arm system in the market that is factory
calibrated and certified to B89 specifications.
CONFIGURATIONS
The Romer Absolute Arm Scanner 73 and 75 series offer two different levels of performance and features to
suit most inspection requirements.
|
73-Series
|
75-Series
|
Absolute Encoders
|
Included
|
Included
|
Zero-G Counterbalance with Lock
|
Included
|
Included
|
SpinGrips
|
N/A
|
Included
|
TESA TKJ Connector
|
Included
|
Included
|
3 TESA Hard Probes
|
Included
|
Included
|
Integrated Scanner
|
Included
|
Included
|
Feature Pack
|
ROMER Scanning Pack
|
ROMER Scanning Pack
|
Digital Camera
|
N/A
|
N/A
|
LED Worklight
|
N/A
|
N/A
|
Certified Calibration Sphere
|
Included
|
Included
|
NIST Traceable Length Standard Bar
|
Optional
|
Included
|
Hard Case
|
Included
|
Included
|
Dust Cover
|
Included
|
Included
|
Base
|
Bolt-down base plate
|
Magnetic
|
Travel Case
|
Included
|
Included
|
Application Software
For Inspection:
or
For Reverse Engineering:
|
Included
PC-DMIS Scanning
or
PC-DMIS Reshaper
|
Included
PC-DMIS Scanning
or
PC-DMIS Reshaper
|
Utility Software
|
RDS
|
RDS
|
Factory Calibration and Certification according to B89.4.22*
|
Included
|
Included
|

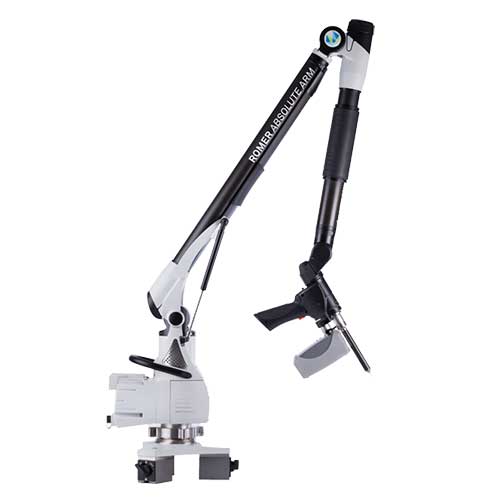

Absolute Arm - 7 Axis SE
The Romer Absolute Arm 7-Axis "SE" series is the ultimate modular scanning solution. Its redesigned
ergonomic handle is easily converted from an external scanner to an integrated version. Sensory feedback
makes it ideal for harsh shop floor conditions while its low-weight, high accuracy features are perfect for
reverse engineering applications.
The Absolute Arm seven axis "SE" series allows the connection of the highly accurate HP-L-20.8, an
interchangeable high performance external laser scanner. Removing the scanner allows the system to function
as a 7 axis "pistol grip" tactile inspection system. The ROMER feature pack capability of the SE
series arm means that an external laser scanner can easily be added, changed, or upgraded at any time, for
greater convenience plus future proofing.
CONFIGURATIONS
The Romer Absolute Arm Scanner 73 and 75 series offer two different levels of performance and features to
suit most inspection requirements.
|
73-Series
|
75-Series
|
Absolute Encoders
|
Included
|
Included
|
Zero-G Counterbalance with Lock
|
Included
|
Included
|
SpinGrips
|
N/A
|
Included
|
TESA TKJ Connector
|
Included
|
Included
|
3 TESA Hard Probes
|
Included
|
Included
|
Integrated Scanner
|
Included
|
Included
|
Feature Pack
|
ROMER Scanning Pack
|
ROMER Scanning Pack
|
Digital Camera
|
N/A
|
N/A
|
LED Worklight
|
N/A
|
N/A
|
Certified Calibration Sphere
|
Included
|
Included
|
NIST Traceable Length Standard Bar
|
Optional
|
Included
|
Hard Case
|
Included
|
Included
|
Dust Cover
|
Included
|
Included
|
Base
|
Bolt-down base plate
|
Magnetic
|
Travel Case
|
Included
|
Included
|
Application Software
For Inspection:
or
For Reverse Engineering:
|
Included
PC-DMIS Scanning
or
PC-DMIS Reshaper
|
Included
PC-DMIS Scanning
or
PC-DMIS Reshaper
|
Utility Software
|
RDS
|
RDS
|
Factory Calibration and Certification according to B89.4.22*
|
Included
|
Included
|

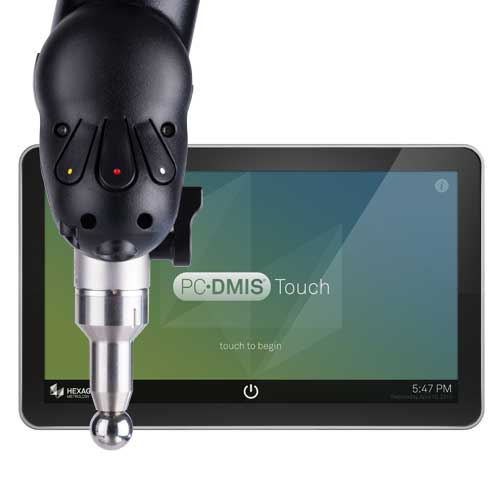

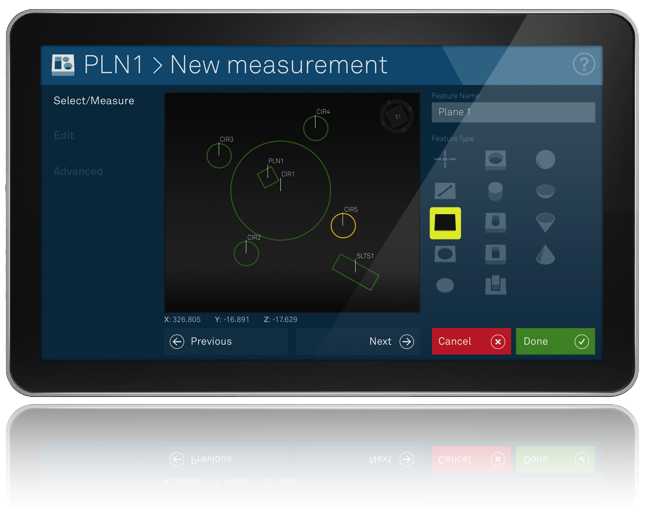

PC-DMIS Touch
PC-DMIS Touch is a revolutionary new way to interact with inspection data and coordinate measurement
devices. With a full-screen interface, advanced Multi-Touch technology, intuitive inspection routines, and
the power of PC-DMIS built in - PC-DMIS Touch is an ideal complement to many measurement applications.
With PC-DMIS Touch you can quickly measure prismatic shapes, take dimensions, print reports and generate
and run repeatable inspection routines in a fraction of the time. With PC-DMIS Touch's incredible ease
of use, you are in control of the data collection. It's an ideal complement to many 3D inspection
systems.

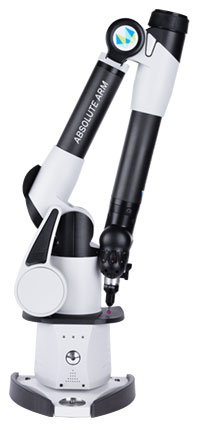

Absolute Arm 1.2m
The Romer Absolute Arm 1.2m portable coordinate measuring machine (CMM) uses industry-proven technology to
provide high-accuracy 3D measurement in a 1.2 m volume. It is ideal for use within confined spaces, including
inside a machining center for dimensional control of molds, parts, tooling, castings, and more. The Romer
Absolute Arm 1.2m streamlines the measurement process as a viable alternative to a range of manual tools such
as height gages, dial calipers, bore gages, gage blocks, micrometers, and dial indicators.
To simplify set-ups, a counterweight system enables the Romer Absolute Arm 1.2m to be used without mountings
on any surface. Absolute encoders, a standard feature on the Absolute Arm line, eliminate complicated
referencing procedures. The operator can start measuring with merely the flip of a switch. Romer Absolute Arm
feature packs allow wireless battery-powered operation for maximum portability on the shop-floor, while an
integrated camera and worklight facilitate inspections in harsh environments.
A replacement for the ROMER MultiGage, the Romer Absolute Arm 1.2m is available in two models and can be
certified to ISO 10360-2 or B89.4.22. Usability features include automatic probe recognition to ensure
repeatable results for different probes without calibration and haptic feedback to alert users if an axis
limit is reached, eliminating the risk of bad measurements. The Romer Absolute Arm 1.2m is also compatible
with PC-DMIS Touch, the revolutionary measurement software that uses high-resolution Multi-Touch display
technology on a tablet PC.
CONFIGURATIONS
The Romer Absolute Arm Scanner 73 and 75 series offer two different levels of performance and features to
suit most inspection requirements.
|
73-Series
|
75-Series
|
Absolute Encoders
|
Included
|
Included
|
Counterweight
|
Included
|
Included
|
TESA TKJ Connector
|
Included
|
Included
|
3 TESA Hard Probes
|
Included
|
Included
|
Digital Camera
|
Included
|
Included
|
LED Worklight
|
Included
|
Included
|
Certified Calibration Sphere
|
Included
|
Included
|
NIST Traceable Length Standard Bar
|
Optional
|
Included
|
Hard Case
|
Included
|
Included
|
Dust Cover
|
Included
|
Included
|
Base
|
Bolt-down base plate
|
Magnetic
|
Travel Case
|
Included
|
Included
|
Utility Software
|
RDS
|
RDS
|
Factory Calibration and Certification according to B89.4.22
|
Included
|
Included
|
Tube Inspection
Discover the cost-effective solution for non-contact precision measurement of tubes.
The Romer Tube Inspection solution uses infrared and laser technology to measure bend paths for tube
inspections and reverse engineering applications. The system is able to be upgraded to interface directly to
a CNC tube bending machine for instant corrections.
The Romer Tube Inspection Solution is the only portable true tube inspection solution on the market. It can
be used in the field to measure and reverse engineer pipes, lines, and tubes to fabricate replacements on the
spot for process industries and MRO applications.
