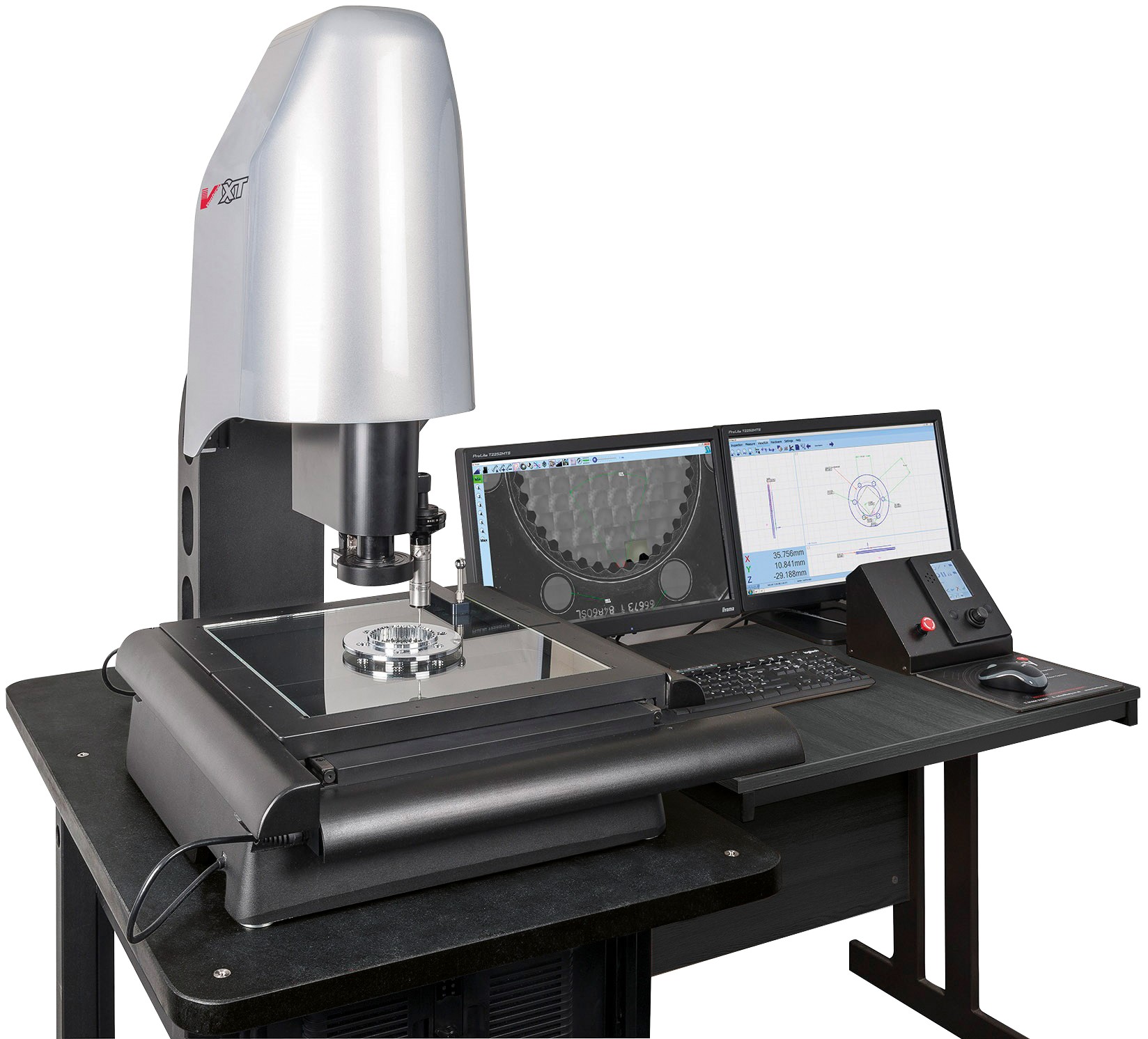

Baty Vision Systems - Venture 3D CNC

Venture CNC models take the power of fusion software one stage further by completely automating the inspection process. Now advanced features like scanning and best fitting can be done quickly without taking up the time of skilled operators.

CNC programming is a simple teach and repeat process. Just measure the part once and a full CNC program is created automatically. The zoom lens can also be controlled so that magnification changes are all recorded into the program.

Large Measurement Volume The use of a touch probe is optimised on a CNC system. Measurements from data points taken using the touch probe can be combined with those taken using video edge detection for optimum speed and reduced inspection times.

A probe changer rack can be installed so that probe modules fitted with a variety of pre-calibrated styli can also be used in the same inspection. When a change of stylus is required, the system automatically puts the current probe module back in the rack and picks up the next to continue the inspection process.

When programming using the touch probe, use only the minimum points required to define each element. Then simply edit in the optimum number of points for each element. The new probe path is then automatically created when the program is played, cutting down both programming and inspection time.

For more information please visit Bowers Group

FEATURES

Standard CNC system features include:

  • Teach and Repeat programming
  • Programmable segmented LED lighting
  • 6.5:1 zoom optics (with optional CNC control)
  • Optional 12x zoom optics
  • High resolution 0.5µm scales for increased accuracy
  • CAD import / export
  • Scanning & best fitting
  • Fully dimensioned part view
  • SPC included
  • One click output to Excel™
  • Autofocus
  • 165mm Z axis measuring range on adjustable dovetail slide
  • 250mm x 125mm and 300mm x 300mm XY stages available
  • Auto program from CAD

Advanced error mapping.

Once the X-Z and Y-Z alignment and calibration is completed, every Venture goes through an error mapping process using a calibrated master grid as a reference. Any errors in X, Y, Xdy, Ydx and X-Y squareness are compensated and verified. The grid is then re-positioned in the Z axis and the process repeated to eliminate Xdz and Ydz errors.

Reporting

Graphical reports show the measured part as a dimensioned drawing with ‘in tolerance’ dims shown in green and ‘out of tolerance’ dims shown in red for an instant pass / fail classification. Geometric call outs can also be shown as well as datum features and true position.

Supplementary tabulated reports show nominals as well as tolerance values with a ‘PASS’ or ‘FAIL’ SPC information can either be reported or exported to excel. Distribution and control charts are also produced.

Programmable Segmented Light

Lighting is critical to ensure that the correct edge is measured. Baty’s new programmable LED lighting head allows the user to define any segment pattern to be switched on. This means that oblique lighting conditions can be achieved to illuminate more difficult edges.

Segments can then be rotated and intensity varied to suit the radial position of the edge. Once set, the lighting condition for each measured feature is now automatically programmed and will be reproduced by the software each time a new part is measured. Through the lens (TTL) lighting is included for applications like blind bore measurement. 64 white LED’s are used to ensure Venture’s high quality colour image is achieved.

Only now can this functionality be combined with traditional touch probe technology to offer the ultimate in large format multi-sensing Vision systems – Venture Plus. The Venture range of products are designed and built at Baty's Burgess Hill factory in the south of England. The latest 3D modelling techniques were used to optimise the new base / column design to ensure stability.

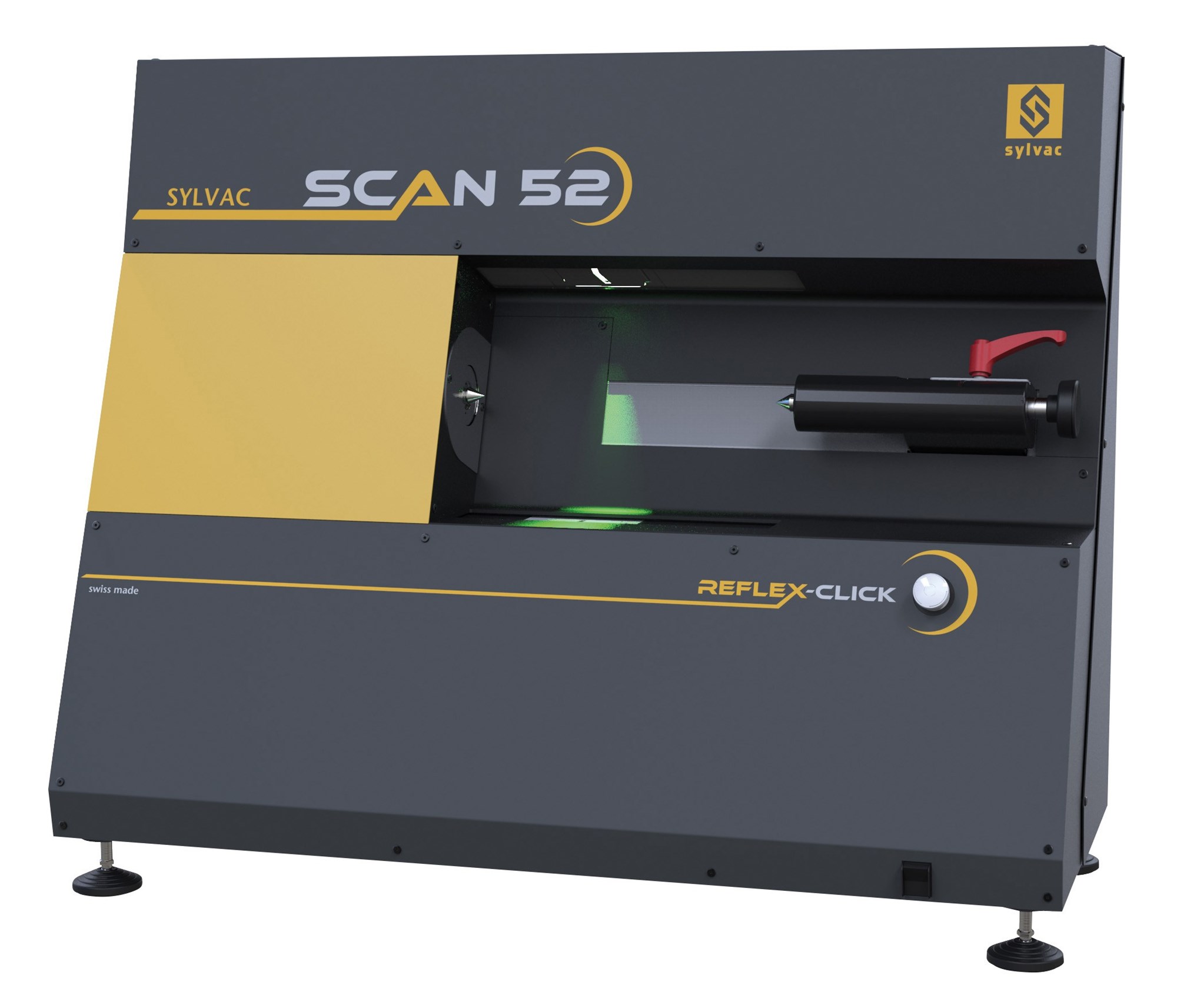

Sylvac Scan 52 Optical Measuring Machine for Turned Parts

The S-Scan is the first horizontal machine specially designed for workshop measurement close to the machine tool. The concept is to measure the parts in the same position as they are machined.

Suitable for first-off parts, control in process (SPC), sampling or 100% inspection, the S-SCAN 52 machines are set to revolutionise control in the workshop. It's this simple:

Place the workpiece on the S-SCAN machine, press the button and get all the values automatically and without pre-programing. Perfectly integrated in the workshop, our S-SCAN 52 machines replace conventional measuring systems including multi-gauging jigs thanks to their unsurpassed flexibility and time saving.

Delivery includes:

  • Instrument according to technical specifications
  • 2 male centers
  • Computer
  • Mouse
  • Keyboard
  • Windows multilingual operating system
  • Screen
  • Manual
  • Reflex-Scan Software
  • Rotary headstock (model 30-902-5521 only)

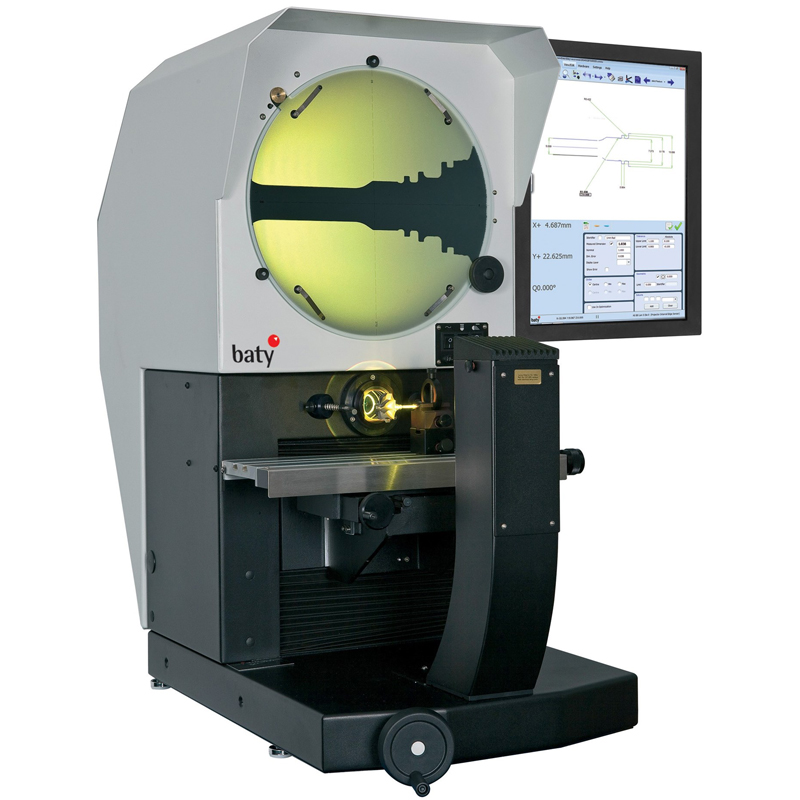

Baty R400

The Baty R400 bench mount profile projector with its 400mm screen combines high accuracy non-contact measurement and inspection with a large 300mm x 150mm measuring range.

Choice of digital readouts and automatic profile edge detection. The horizontal light path configuration is ideal for checking machined components that can be secured to the workstage using a range of optional accessories from the Baty fixture family. The robust design of the R400 makes it suitable for both the shop floor and standards room.

FEATURES

  • 400mm (16") screen with 90º crosslines and chart clips
  • Profile illumination with halogen lamp and green filter
  • Lens magnification choice: x10, x20, x25, x50 and x100
  • Surface illumination (fibre optic)
  • Helix adjustment of light source for accurate thread form projection
  • Workstage with two machined slots for holding accessories
  • Workstage measuring range of 300mm (12") x 150mm (6")
  • Digital angle measurement

AVAILABLE OPTIONS

  • Internally fitted automatic edge sensor (FT2-E model only)
  • Swing over lamphouse to allow clear access to the workstage
  • Various electronic measuring systems to suit individual requirements
  • Cabinet stand ensures a solid base and provides storage
  • Computer numerical control (CNC) for automated measuring
  • Other options include foot switch control

MEASURING OPTIONS

XLS: A simple 2 axis digital readout for X&Y measurement.

GXL: Incorporates geometric functions for skew alignment, circle, Line, angle and radius measurement. Pitch circle diameter and construction of intersection points etc. Tolerancing and simple reporting also included.

GXL-E: As GXL with screen mounted automatic profile edge sensor. As an option the sensor can be fitted internally.

FT-2: Complete TOUCH SCREEN DRO with 2D Fusion touch software. Full geometric functionality, view of measured part can be printed as a fully dimensioned drawing. Full reporting capability includes, SPC, tabulated details with pass / fail analysis, auto link to Excel and auto sequence programming feature. Windows O/S and built in 19" portrait touch screen monitor in a rugged all steel housing.

FT-2E: Complete TOUCH SCREEN DRO with 2D Fusion Touch software as above. Built-in optical edge detection allows data points to be taken ‘on the fly’ as the projected image is passed under the screenmounted fibre optic sensor. An internally mounted edge sensor is available as an option on all ‘R’ series projectors.

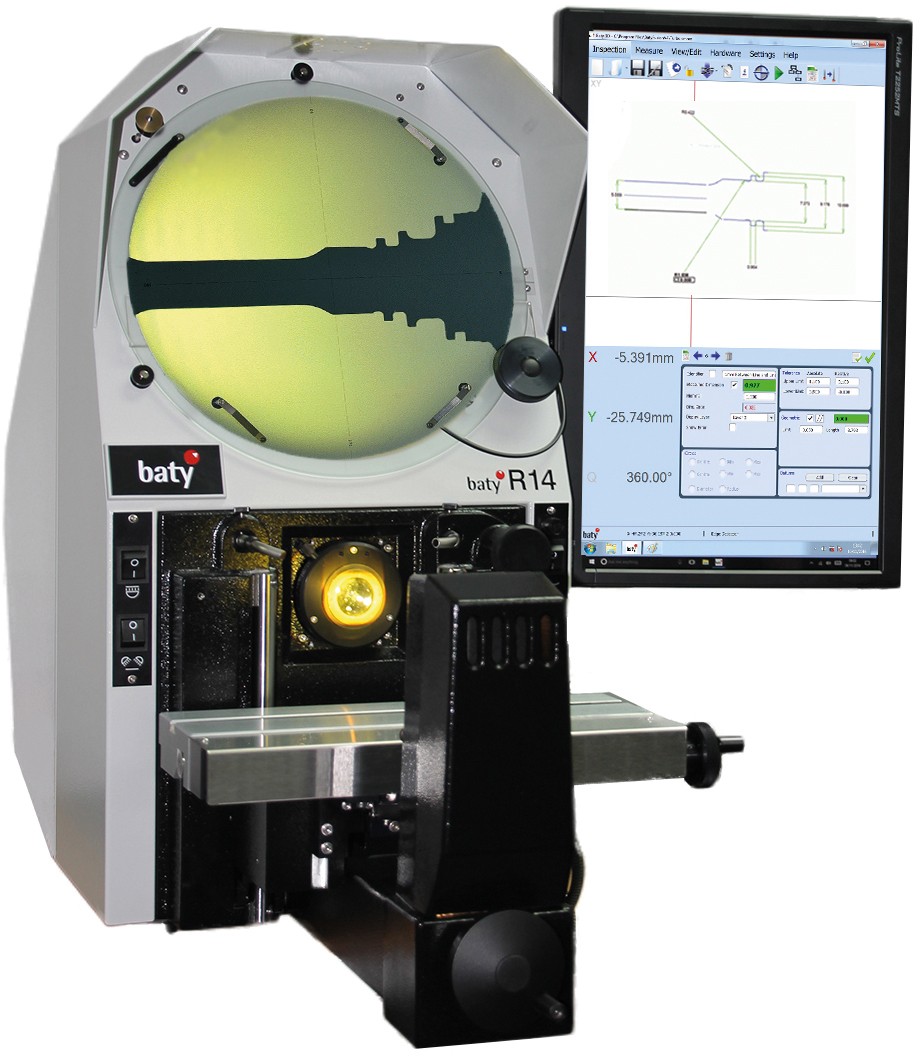

Baty R14 - Profile Projector

The Baty R14 bench mount profile projector with its 340mm screen combines high accuracy non-contact measurement and inspection with a large 175mm x 100mm measuring range.

Choice of digital readouts and optional automatic profile edge detection. The horizontal light path configuration is ideally suited to machined parts that can be secured to the workstage using a range of optional accessories from the Baty fixture family. The compact and robust lightweight chassis makes the R14 ideal for workshop environments.

Baty R14 - Profile Projector

FEATURES

  • 340mm (14") screen with 90º crosslines and chart clips
  • Profile illumination with halogen lamp and green filter
  • Lens magnification choice: 10x, 20x, 25x, 50x and 100x
  • Surface illumination (fibre optic)
  • Helix adjustment of light source ± 7º for accurate thread form projection
  • Workstage with machined slot for holding accessories
  • Workstage measuring range of 175mm (7") x 100mm (4")
  • Digital angle measurement to 1 minute
  • 10x lens included
  • 0.5 micron resolution

MEASURING OPTIONS

GXL: Incorporates geometric functions for skew alignment, circle, Line, angle and radius measurement. Pitch circle diameter and construction of intersection points etc. Tolerancing and simple reporting also included.

GXL-E: As GXL with screen mounted automatic profile edge sensor. As an option the sensor can be fitted internally.

FT-2: Complete TOUCH SCREEN DRO with 2D Fusion touch software. Full geometric functionality, view of measured part can be printed as a fully dimensioned drawing. Full reporting capability includes, SPC, tabulated details with pass / fail analysis, auto link to Excel and auto sequence programming feature. Windows O/S and built in 19" portrait touch screen monitor in a rugged all steel housing.

FT-2E: Complete TOUCH SCREEN DRO with 2D Fusion Touch software as above. Built-in optical edge detection allows data points to be taken ‘on the fly’ as the projected image is passed under the screenmounted fibre optic sensor. An internally mounted edge sensor is available as an option on all ‘R’ series projectors.
